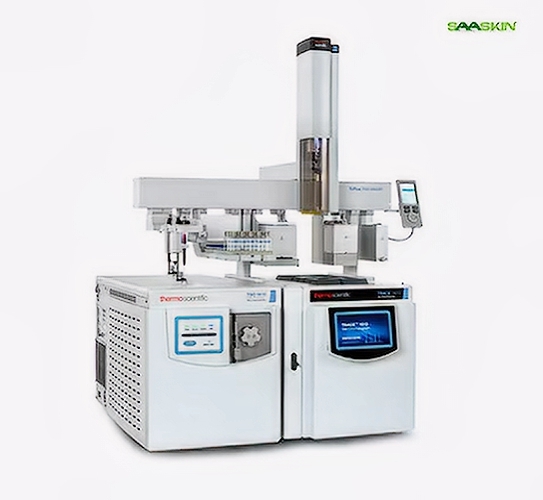

Thermo Scientific TSQ 9610 Triple Quadrupole GC-MS

Thermo Scientific TSQ 9610 Triple Quadrupole GC-MS

Get a Price/Quote

Product Details:

Measurement Range 1.21050 amu (mass range)
Voltage 220/240 V AC
Model No TSQ 9610
Accuracy Low femtogram sensitivity, high selectivity with triple quadrupole operation
Capacity 96-sample vial tray (standard autosampler configuration)
Power Source 220-240 V AC
Feature Extended uptime with Active-Bent Ion Guide, NeverVent technology, full automation
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermo Scientific TSQ 9610 Triple Quadrupole GC-MS Price And Quantity

Thermo Scientific TSQ 9610 Triple Quadrupole GC-MS Product Specifications

Accuracy Low femtogram sensitivity, high selectivity with triple quadrupole operation
Usage Quantitative and qualitative analysis of complex samples in environmental, food safety, clinical, forensic, and pharmaceutical applications
Equipment Materials Corrosion-resistant stainless steel, aluminum alloy
Capacity 96-sample vial tray (standard autosampler configuration)
Weight Approximately 80 kg
Power Source 220-240 V AC
Measurement Range 1.21050 amu (mass range)
Voltage 220/240 V AC
Dimension (L*W*H) 77.5 cm x 60.9 cm x 52.0 cm
Model No TSQ 9610
Display Type 19-inch color LCD touchscreen (external, PC-based)
Type Triple Quadrupole Gas Chromatograph Mass Spectrometer (GC-MS/MS)
Automation Grade Fully Automated
Feature Extended uptime with Active-Bent Ion Guide, NeverVent technology, full automation
Temperature Range Oven: Up to 450C; Transfer line: Up to 350C
Core Components Mass spectrometer, gas chromatograph, autosampler
Frequency 50/60 Hz

Data System Thermo Scientific TraceFinder or Chromeleon software
Operating Environment 10-35C, max. 80% RH, non-condensing
Dynamic Range > 10
Carrier Gas Helium, Hydrogen, Nitrogen (support for multiple carrier gas types)
Cooling Rate (Oven) Up to 140C/min
Sample Introduction Supports direct injection, split/splitless, programmable temperature vaporizer (PTV), or headspace
Detection Electron multiplier and photomultiplier detectors
Compliance RoHS, CE, and other international laboratory standards
Ionization Modes Electron Impact (EI), Chemical Ionization (CI) (optional)
Communication Ports USB, Ethernet, RS232
Vacuum System Split flow turbo molecular pump and rotary fore pump
Scan Speed Up to 20,000 u/sec
Maintenance Features NeverVent technology enables ion source cleaning without breaking vacuum
Noise Level < 65 dBA
Mass Resolution Unit resolution (0.6 Da at 50% valley)

Product Description

Brand Thermo Fisher Scientific

Model TSQ 9610

Capacity NeverVent with AEI

CAT No TSQ9610-NV-AEI

Application Spectroscopy

To confidently stay ahead, your GC-MS/MS system must deliver ultimate performance while consistently producing trusted quantitative results. For this, turn to the Thermo Scientific TSQ 9610 Triple Quadrupole GC-MS/MS System. User-centric Thermo Scientific NeverVent technology, extended-life detector, and intelligent software eliminate unnecessary downtime to maximize your sample throughput and return on investment (ROI). New extended linear dynamic range combined with proven high sensitivity ensures you keep ahead of the toughest regulatory methods and business demands.

Advanced Ionization and Detection Technology

The TSQ 9610 utilizes both Electron Impact (EI) as standard and optional Chemical Ionization (CI) modes to maximize versatility and analyte coverage. Its electron multiplier and photomultiplier detectors ensure sensitive, accurate quantitation and identification of trace compounds, while unit resolution (0.6 Da at 50% valley) provides confident peak separation and minimal interference.

Effortless Operation and Maintenance

With NeverVent technology, routine ion source cleaning can be performed without breaking the vacuum, minimizing downtime and safeguarding productivity. The system is fully automated, integrating a 96-vial autosampler, a user-friendly 19-inch touchscreen, and robust communication interfaces (USB, Ethernet, RS232) for seamless laboratory workflow.

Flexible Sample Introduction and Carrier Gas Options

Supporting direct injection, split/splitless, programmable temperature vaporizer (PTV), and headspace sampling, the TSQ 9610 accommodates diverse sample types and injection strategies. Compatibility with helium, hydrogen, and nitrogen carrier gases provides operational flexibility and adaptability to laboratory preferences and regulatory requirements.

FAQ's of Thermo Scientific TSQ 9610 Triple Quadrupole GC-MS:

Q: How does the NeverVent technology benefit routine maintenance of the TSQ 9610 GC-MS/MS?

A: NeverVent technology allows the ion source to be cleaned without breaking vacuum, which drastically reduces instrument downtime. This feature ensures continuous productivity and prolongs component lifespan by maintaining optimal operating conditions.

Q: What applications is the Thermo Scientific TSQ 9610 best suited for?

A: The TSQ 9610 is ideal for complex quantitative and qualitative analyses in environmental testing, food safety, clinical diagnostics, forensic investigations, and pharmaceutical research, thanks to its exceptional sensitivity, selectivity, and automation.

Q: When should I use Chemical Ionization (CI) mode rather than Electron Impact (EI) mode?

A: Chemical Ionization (CI) is recommended for analytes that are thermally labile or not easily ionized by Electron Impact (EI). CI typically produces less fragmentation, resulting in more identifiable molecular ions and improved detection of specific compounds.

Q: Where can I manage and analyze my data with the TSQ 9610 system?

A: Data acquisition and analysis can be performed using the Thermo Scientific TraceFinder or Chromeleon software platforms. These user-friendly interfaces streamline instrument control, data processing, and reporting, optimizing laboratory efficiency.

Q: What sample introduction techniques are compatible with the TSQ 9610 GC-MS/MS?

A: The instrument supports direct injection, split/splitless modes, programmable temperature vaporization (PTV), and headspace sampling, offering flexibility to match diverse analytical workflows and sample types.

Q: How does the TSQ 9610 deliver high sensitivity and selectivity in analyses?

A: Utilizing a triple quadrupole design, advanced ionization modes, and Active-Bent Ion Guide, the TSQ 9610 achieves low femtogram-level sensitivity and high selectivity. This architecture effectively reduces noise and enhances detection of target analytes even in complex backgrounds.

Q: What is the maximum scan speed of the TSQ 9610 and why is it important?

A: The TSQ 9610 supports scan speeds up to 20,000 u/sec, enabling acquisition of high-quality data even from rapidly eluting chromatographic peaks. Fast scan capability is crucial for comprehensive screening and simultaneous quantification of multiple analytes.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Life Sciences' category

Agilent Technologies Ultivo Triple Quadrupole LC/MS System Core Components : Triple quadrupole analyzer, ion source, vacuum system, detector, electronics, software Temperature Range : Ambient to 600C (ion source) Feature : Spacesaving compact design, Active exhaust, Jet Stream ESI, fast polarity switching, easy maintenance Frequency : 50/60 Hz Automation Grade : Automatic, softwarecontrolled Type : Triple Quadrupole LC/MS System Measurement Range : 10 fg to 100 ng dynamic range Voltage : 100240 V AC Model No : Ultivo G6465A Display Type : Touchscreen LCD interface (via MassHunter LC/MS software) Dimension (L*W*H) : 54 x 44 x 50 cm Weight : ~85 kg (187 lbs) Equipment Materials : Stainless steel, chemically resistant polymers Usage : Quantitative analysis in pharmaceutical, environmental, food safety, and clinical research applications Accuracy : High quantitation accuracy, <0.1 Da mass accuracy Power Source : AC electrical Capacity : Up to 6,000 MRM transitions per second

Send Inquiry

Metrohm 895 Professional PVC Thermomat Core Components : Measuring cells, Thermostatic block, Control unit Temperature Range : Ambient to 250C Feature : Automated measurement, intuitive operation, GLPcompliant data handling Frequency : 50/60 Hz Automation Grade : Fully automatic Type : Professional PVC Thermomat Measurement Range : Defined by temperature range and sensor capability Voltage : 100240 V AC Model No : 895 Professional PVC Thermomat Display Type : Highresolution color touchscreen display Dimension (L*W*H) : 240 x 390 x 310 mm Weight : Approximately 10 kg Equipment Materials : Highquality corrosionresistant materials Usage : Thermal stability testing of PVC and similar polymers Accuracy : 0.1C Power Source : AC Mains Capacity : Up to 8 samples simultaneously

Send Inquiry

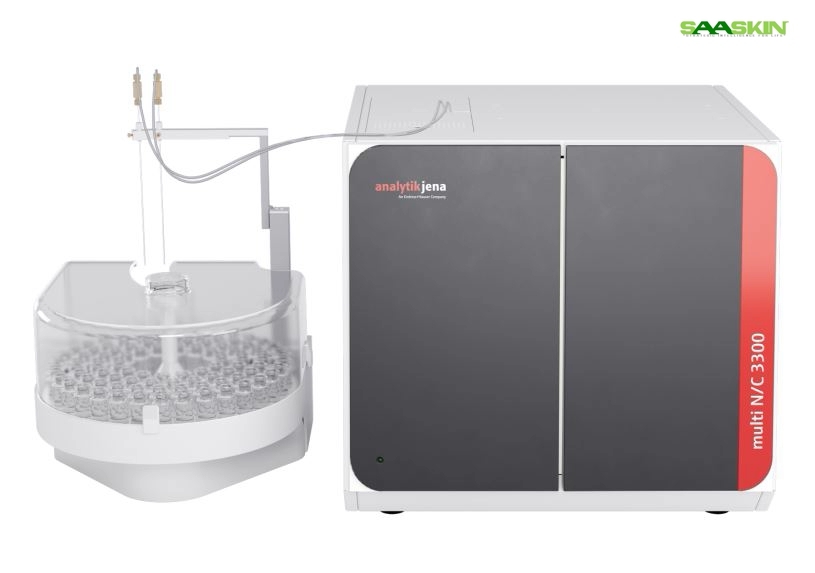

Analytikjena Multi N/C 3300 duo - Fully Automated TOC Analyzer Core Components : Highprecision syringe, NDIR detector, hightemperature combustion unit, autosampler Temperature Range : up to 950C (catalytic hightemperature combustion) Feature : Automated parallel sample processing, UV/persulfate and hightemperature catalytic combustion, maintenancefree NDIR detector, selfdiagnosis, maintenance interval display Frequency : 50/60 Hz Automation Grade : Fully Automated Type : Fully automated TOC/TNb analyzer Measurement Range : 0.0130,000 mg/L TOC/TNb Voltage : 230 V Model No : multi N/C 3300 duo Display Type : Highresolution color touchscreen display Dimension (L*W*H) : 590 x 415 x 465 mm Weight : Approx. 38 kg Equipment Materials : Corrosionresistant, highquality alloys and polymers Usage : Total Organic Carbon (TOC), TNb and NPOC analysis in liquids and solids (with duo option) Accuracy : 3% RSD (repeatability, depending on application) Power Source : AC power supply Capacity : up to 8 ml injection volume (variable depending on model)
