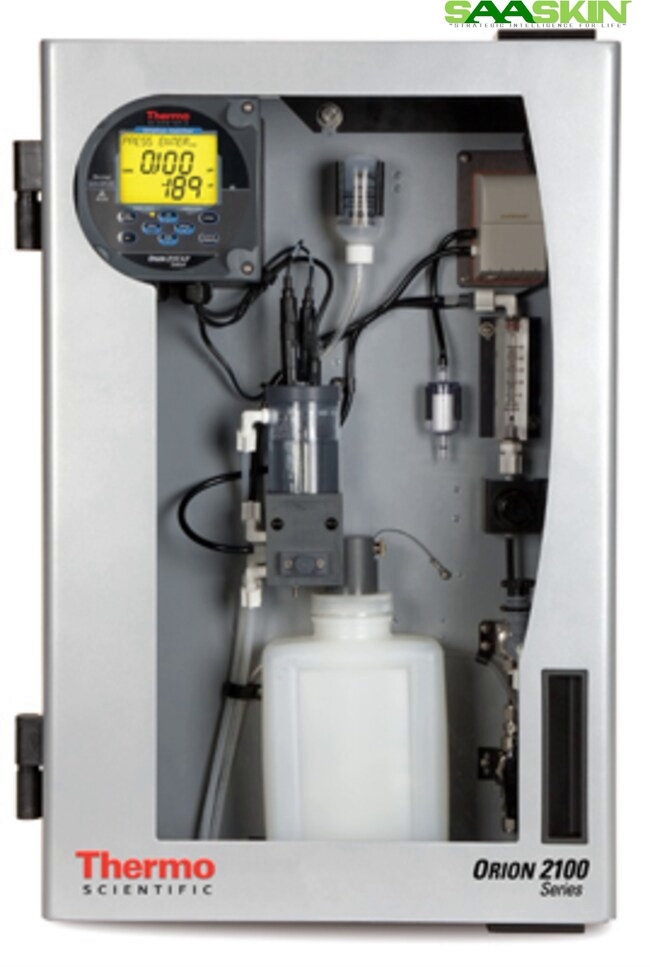

Thermo Scientific Orion 2111LL Low Level Sodium Analyzer

Thermo Scientific Orion 2111LL Low Level Sodium Analyzer

Get a Price/Quote

Product Details:

Model No Orion 2111LL
Measurement Range 0.01 ppb to 10,000 ppb sodium
Automation Grade Automatic
Feature Automatic calibration, automatic electrode regeneration, high sensitivity
Voltage 100240 VAC
Core Components Electrode module, sample conditioning system, microprocessor control unit
Temperature Range 5C to 45C (Operating)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermo Scientific Orion 2111LL Low Level Sodium Analyzer Price And Quantity

Thermo Scientific Orion 2111LL Low Level Sodium Analyzer Product Specifications

Display Type Large Backlit LCD Display
Capacity Up to 10000 ppb sodium
Frequency 50/60 Hz
Dimension (L*W*H) 330 mm x 300 mm x 300 mm
Usage Continuous online sodium monitoring in ultrapure water applications
Power Source AC Powered
Type Low Level Sodium Analyzer
Accuracy 5% of reading or 2 ppb, whichever is greater
Weight Approx. 9 kg
Automation Grade Automatic
Measurement Range 0.01 ppb to 10,000 ppb sodium
Model No Orion 2111LL
Core Components Electrode module, sample conditioning system, microprocessor control unit
Voltage 100240 VAC
Feature Automatic calibration, automatic electrode regeneration, high sensitivity
Temperature Range 5C to 45C (Operating)
Equipment Materials Corrosion resistant materials, industrial-grade enclosure

Enclosure Rating IP65 (NEMA 4X)
Data Output 2 x 4-20 mA, RS232, alarm relays
Sample Inlet/Outlet Connections 1/4" OD tubing
Calibration Automatic or Manual (1, 2, or 3 point)
Mounting Wall or panel mount
Electrode Type Glass combination sodium ion selective electrode with reference system
Ambient Humidity Range 10-90% (Non-condensing)
Sample Pressure 5 to 100 psig (0.34 to 6.9 bar)
Response Time Typically <10 minutes to 95% of final reading
Display Units ppb, µg/L, mg/L
Sample Flow Rate 200 to 400 mL/hr
Alarms User adjustable high/low, instrument and system error alerts

Product Description

Brand Thermo Fisher Scientific

Model Orion

Capacity 5C to 35C

CAT No 2111LL

Application Inprocess Analysis

Protect your turbine against destructive sodium levels, including trace amounts, with the reliable and easy to use Thermo Scientific Orion 2111LL Low Level Sodium Analyzer. Available in several configurations including the analyzer instrument only, or with a protective enclosure.

Precise Low-Level Sodium Detection

With its advanced glass ion selective electrode technology, the Orion 2111LL achieves high-sensitivity and accuracy in detecting trace levels of sodium. This makes it indispensable for monitoring ultrapure water in power generation, semiconductor manufacturing, and laboratory environments where even minute sodium levels can influence critical processes.

Automatic Calibration and User-Friendly Display

The Orion 2111LL supports both automatic and manual calibration (1, 2, or 3 point) for optimal accuracy and ease of use. Its large backlit LCD display ensures clear readouts in various units (ppb, g/L, mg/L), and real-time alarms help ensure water quality is maintained at all times.

Rugged Construction and Versatile Integration

Built with corrosion-resistant materials and housed in an IP65 (NEMA 4X) rated enclosure, the analyzer can be wall or panel mounted to fit your setup. Designed for industrial environments, the system connects easily via 1/4-inch OD tubing and features multiple data output options for seamless integration into plant control systems.

FAQ's of Thermo Scientific Orion 2111LL Low Level Sodium Analyzer:

Q: How is the Thermo Scientific Orion 2111LL sodium analyzer calibrated?

A: The analyzer supports both automatic and manual calibration methods, allowing 1, 2, or 3 point calibrations to tailor the process to your requirements. This flexibility ensures precise and consistent measurements in every application.

Q: What is the recommended sample flow rate for this sodium analyzer?

A: The Orion 2111LL operates efficiently with a sample flow rate between 200 and 400 mL/hr, optimizing measurement stability and response time for continuous online sodium monitoring.

Q: When should I use the Orion 2111LL sodium analyzer?

A: This analyzer is ideal for applications requiring strict sodium control, including ultrapure water systems in power plants, semiconductor fabrication, and laboratory water purification processes, where even trace sodium can be critical.

Q: Where can the analyzer be installed in my facility?

A: With its robust, industrial-grade IP65 enclosure, the 2111LL can be wall or panel mounted both indoors and in challenging environments. Its compact dimensions and corrosion-resistant construction make it suitable for integration into various plant locations.

Q: What are the main benefits of using this low-level sodium analyzer?

A: Key benefits include high sensitivity (capable of detecting as low as 0.01 ppb sodium), automated electrode regeneration, automatic calibration, fast response times, and versatile communication outputs-all of which ensure reliable, continuous process monitoring.

Q: How does the alarm system enhance operational safety?

A: User-adjustable high/low alarms, system error notifications, and instrument alerts help operators maintain stringent water quality control by providing early warnings and minimizing downtime due to process deviations.

Q: What process steps are involved in continuous sodium measurement using this instrument?

A: The process involves automatic sample conditioning, sodium detection via a sensitive glass electrode, real-time data output, and periodic calibration or electrode regeneration, all managed by an integrated microprocessor control unit for uninterrupted monitoring.
