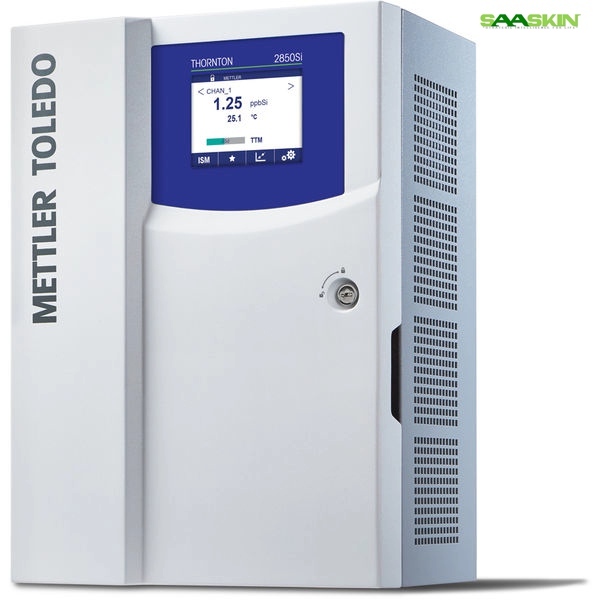

Mettler Toledo Analyzer 2850Si Silica 2/Enc/PO4

Mettler Toledo Analyzer 2850Si Silica 2/Enc/PO4

Get a Price/Quote

Product Details:

Temperature Range 5C to 45C
Core Components Measurement sensor modules, touch screen interface, reagent containers
Capacity 2-channel, simultaneous measurement
Automation Grade Automatic
Measurement Range 05000 ppb SiO2, 01000 ppb PO4
Power Source AC powered
Frequency 50/60 Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo Analyzer 2850Si Silica 2/Enc/PO4 Price And Quantity

Mettler Toledo Analyzer 2850Si Silica 2/Enc/PO4 Product Specifications

Display Type 7-inch color touchscreen
Measurement Range 05000 ppb SiO2, 01000 ppb PO4
Capacity 2-channel, simultaneous measurement
Core Components Measurement sensor modules, touch screen interface, reagent containers
Type Silica and Phosphate Analyzer
Temperature Range 5C to 45C
Weight approximately 23 kg
Usage Continuous online water quality monitoring
Automation Grade Automatic
Feature Low reagent consumption, high accuracy, automated operation
Equipment Materials IP66/NEMA4x protected enclosure; robust industrial design
Accuracy <2% of measured value or 3 ppb (SiO2)
Voltage 100240 VAC
Frequency 50/60 Hz
Power Source AC powered
Model No 2850Si
Dimension (L*W*H) 432 x 356 x 203 mm

Response Time Typically <10 min for full-cycle analysis
Sample Inlet Pressure 16 bar (1487 psi)
Maintenance Interval Minimal, typically quarterly for reagent change
Alarm Functions Programmable thresholds for process safety
Sample Temperature 5C to 50C (sample inlet)
Sample Streams Up to 2 separate process lines
Language Support Multi-language touchscreen display
Installation Wall-mounted or panel-mountable design
Reagent Handling Easy-to-replace, pre-filled reagent packs
Ambient Humidity Max 95% relative humidity, non-condensing
Application Power plants, industrial water treatment, boiler feedwater
Data Output 420 mA, MODBUS, PROFIBUS, Ethernet communication interfaces

Product Description

Brand

Mettler Toledo

Model

2850Si

Capacity

0-5000 ppb, limit of detection per ASTM Method D7126

CAT No

30571935

Application

Water System

The 2850Si 2/ENC/PO4 Silica Analyzer offers unique 3-in-1 silica, phosphate and multi-stream monitoring capabilities for power plant water chemistry. Achieve greater functionality at lower cost with this compact and efficient analyzer.

Optimized for Industrial Applications

Ideal for industries like power generation and water treatment, the 2850Si analyzer offers continuous monitoring of silica and phosphate across two separate process lines. Its robust design and adaptable installation options ensure dependable operation in challenging, high-humidity settings, safeguarding critical water quality processes.

Effortless Maintenance and Operation

With pre-filled reagent packs that are quick to swap out, quarterly maintenance becomes straightforward. The intuitive 7-inch touchscreen display, multi-language support, and automated alerts streamline ongoing operation, making specialist training unnecessary. Automated features minimize operator intervention without sacrificing high measurement accuracy.

Advanced Connectivity and Data Integration

Multiple communication options-4-20 mA analogue, MODBUS, PROFIBUS, and Ethernet-make real-time data output and integration with plant control systems seamless. Programmable alarm thresholds enhance process safety and enable early intervention to prevent water quality issues, supporting proactive plant management.

FAQ's of Mettler Toledo Analyzer 2850Si Silica 2/Enc/PO4:

Q: How do I replace reagents in the Analyzer 2850Si Silica 2/Enc/PO4?

A: Reagent replacement is simplified with pre-filled packs designed for easy access. Open the reagent compartment, remove the used packs, and insert new ones-typically performed on a quarterly maintenance schedule without the need for complex tools or extensive training.

Q: What types of sample streams can the analyzer handle?

A: The 2850Si supports up to two separate sample streams, allowing for simultaneous monitoring of different process lines. This makes it particularly suitable for facilities needing to oversee multiple water treatment or boiler feedwater sources.

Q: When should maintenance be performed on this analyzer?

A: Routine maintenance is minimal, with typical intervention required only every three months to change the pre-filled reagent packs. The system's automated operation helps reduce the frequency and complexity of manual maintenance tasks.

Q: Where can I install the 2850Si analyzer in my facility?

A: The unit is versatile and can be mounted either on a wall or panel, optimizing space according to your facility layout. Its IP66/NEMA4x enclosure ensures protection in wet, dusty, or humid environments, and it operates reliably at ambient humidity levels up to 95% (non-condensing).

Q: What are the main benefits of using this analyzer over manual testing methods?

A: Compared to manual sampling and analysis, the 2850Si provides continuous, real-time monitoring with high accuracy (<2% or 3 ppb SiO2), automated data output, and programmable alarms. This ensures rapid response to process deviations, greater consistency, and reduced labor requirements.

Q: How does the analyzer integrate with existing plant control systems?

A: With built-in 4-20 mA, MODBUS, PROFIBUS, and Ethernet interfaces, the analyzer delivers instantaneous data to plant monitoring and control networks, enabling seamless integration into most industrial automation systems for centralized oversight and response.

Q: What is the response time for a full analysis cycle?

A: The analyzer typically completes a full analysis cycle in less than 10 minutes, delivering timely and accurate measurements to support prompt decision-making in critical process environments.
