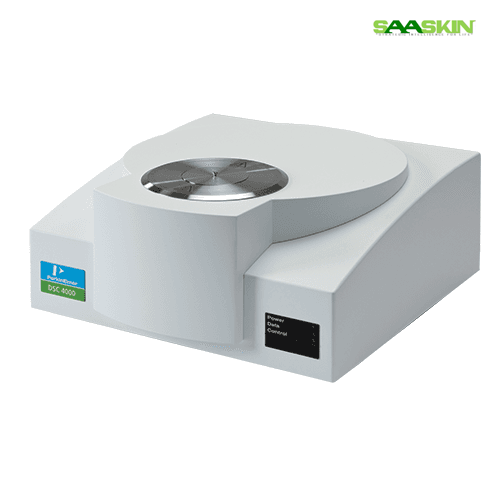

PerkinElmer DSC 4000

Get a Price/Quote

Product Details:

Power Source AC Mains Electric
Automation Grade Semi-automatic
Feature Automated calibration, user-friendly interface, high sensitivity
Measurement Range 0.2 mW to 300 mW (typical heat flow range)
Core Components Furnace, sensor, cooling unit, control electronics
Model No DSC 4000
Accuracy 0.1C temperature precision
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer DSC 4000 Price And Quantity

PerkinElmer DSC 4000 Product Specifications

Voltage 100240 V AC
Usage Thermal analysis for polymers, pharmaceuticals, and materials science research
Capacity Single-sample pan, typically up to 100 L or 100 mg sample capacity
Dimension (L*W*H) 480 mm 330 mm 240 mm
Frequency 50/60 Hz
Temperature Range Ambient to 750C
Equipment Materials Corrosion-resistant high-grade stainless steel and aluminum
Accuracy 0.1C temperature precision
Model No DSC 4000
Core Components Furnace, sensor, cooling unit, control electronics
Measurement Range 0.2 mW to 300 mW (typical heat flow range)
Display Type Digital interface (PC controlled via software)
Weight ~25 kg
Feature Automated calibration, user-friendly interface, high sensitivity
Automation Grade Semi-automatic
Type Differential Scanning Calorimeter (DSC)
Power Source AC Mains Electric

Compliance CE certified, RoHS compliant
Purge Gas Flow Rate 0200 mL/min
Operating System Compatible with Microsoft Windows
Sample Holders Aluminum and hermetic pan options
Baseline Repeatability 10 W
Data Output USB, network connection, compatible with Pyris software
Safety Over-temperature protection, automatic gas shutoff
Atmosphere Inert or oxidative, gas flow-controlled
Heating Rate 0.1C/min to 100C/min
Cooling Rate up to 50C/min with optional Intracooler II

Product Description

Brand PerkinElmer

Model 4000

Capacity -100 C - 450 C

CAT No N5370212

Application Thermal Analyzer

The DSC 4000 offers dependable performance and quality results. This single-furnace, heat flux DSC is designed to run all your routine applications and includes an easy-to-load vertical furnace that is resistant to oxygen and chemical corrosion.

Advanced Thermal Analysis for Broad Applications

The DSC 4000 offers comprehensive thermal analysis capabilities, supporting a wide array of scientific and industrial needs. Its high sensitivity and accuracy allow detailed study of materials' thermal properties, making it ideal for polymer development, pharmaceutical formulation, and innovative materials research.

User-Friendly Operation & Automated Calibration

Designed for seamless integration with laboratory workflows, the DSC 4000 features an intuitive, PC-controlled digital interface and automated calibration. These features simplify daily operation and ensure consistent, reproducible results with minimal user intervention.

Safety and Compliance Prioritized

Safety is ensured through advanced features like over-temperature protection and automatic gas shutoff. Fully CE certified and RoHS compliant, the DSC 4000 meets strict international safety and quality standards, providing users peace of mind during operation.

FAQ's of PerkinElmer DSC 4000:

Q: How does the PerkinElmer DSC 4000 ensure accurate thermal measurements?

A: The DSC 4000 offers a temperature precision of 0.1C and baseline repeatability of 10 W. Automated calibration, user-friendly software integration, and high-quality sensors all contribute to consistent accuracy during thermal measurements.

Q: What types of samples and experiments can be conducted with this calorimeter?

A: This instrument is suitable for polymers, pharmaceuticals, and materials science research. It handles up to 100 L or 100 mg per sample, using both aluminum and hermetic pans, making it versatile for studying heat flow, phase transitions, purity, crystallinity, and more.

Q: When should you use the optional Intracooler II for cooling, and how does it work?

A: The Intracooler II is recommended when rapid cooling or sub-ambient analyses are required, increasing cooling rates up to 50C/min. It integrates with the DSC 4000 to maintain precisely controlled temperatures during exothermic and endothermic processes.

Q: Where can the DSC 4000 data be exported or analyzed?

A: Data can be exported via USB or network connections and is fully compatible with Pyris software, allowing thorough analysis and secure storage on Microsoft Windows-operated systems.

Q: What safety features are included in the DSC 4000?

A: Key safety features include over-temperature protection and automatic gas shutoff. The instrument is also CE certified and RoHS compliant, ensuring adherence to global safety and environmental standards.

Q: How does gas flow control benefit the thermal analysis process?

A: Controlled gas atmospheres (inert or oxidative) and precise purge gas flow (0-200 mL/min) enable accurate simulation of experimental conditions, enhancing data reliability and accommodating sensitive samples or reactions.
