Mettler Toledo Transmitter M800 Water 4-CH

Mettler Toledo Transmitter M800 Water 4-CH

Get a Price/Quote

Product Details:

Automation Grade Automatic
Model No M800 Water 4-CH
Frequency 50/60 Hz
Capacity 4 Channels
Accuracy Sensor dependent, high measurement accuracy
Power Source AC (100-240 V); DC (24 V)
Measurement Range Based on sensor: Conductivity, pH/ORP, Dissolved Oxygen, Ozone, Chlorine, etc.
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo Transmitter M800 Water 4-CH Price And Quantity

Mettler Toledo Transmitter M800 Water 4-CH Product Specifications

Equipment Materials Polycarbonate housing, Aluminum back panel
Temperature Range 0 to 60C
Voltage 100240 VAC, 50/60 Hz; 24 VDC
Feature Multi-parameter measurement, Easy configuration, Plug & Measure module compatibility
Measurement Range Based on sensor: Conductivity, pH/ORP, Dissolved Oxygen, Ozone, Chlorine, etc.
Weight Approx. 2.1 kg
Core Components Power supply, Display, Signal processor
Power Source AC (100-240 V); DC (24 V)
Dimension (L*W*H) 257 x 191 x 107 mm
Accuracy Sensor dependent, high measurement accuracy
Usage Continuous monitoring in water and process applications
Capacity 4 Channels
Type Multi-parameter transmitter
Display Type High-contrast colored TFT touchscreen display
Frequency 50/60 Hz
Automation Grade Automatic
Model No M800 Water 4-CH

Communication Ethernet, Modbus TCP/IP, Profibus, USB
Simultaneous Inputs Up to 4 digital sensors (Intelligent Sensor Management ISM)
Compliance RoHS, WEEE
Sensor Compatibility Compatible with Mettler Toledo ISM and analog sensors
Environment Designed for water, wastewater, steam, and pure water applications
Operating Humidity 1090% RH (non-condensing)
Data Logging Standard event and measured value logs
User Interface Multilingual, touch navigation with on-screen prompts
Mounting Options Wall, Panel or Pipe mount
Ingress Protection IP65, NEMA 4X (front); IP20 (rear)

Product Description

Brand Mettler Toledo

Model M800

Capacity 4-channel

CAT No 58000804

Application Water System

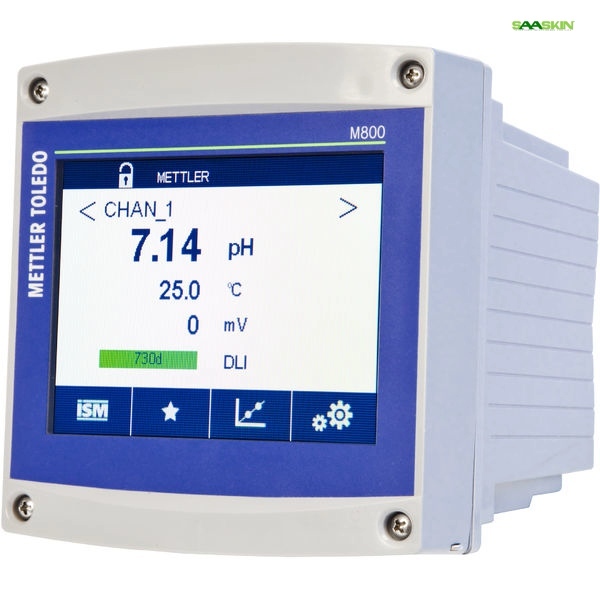

The four-channel M800 water transmitter is a multi-parameter transmitter that provides high-performance, reliable measurement with a convenient full-color touch screen and the ability to integrate with a wide range of ISM and analog sensors.

Versatile Multi-Parameter Measurement

With the M800 Water 4-CH transmitter, users can connect up to four digital ISM or analog sensors simultaneously, measuring parameters like pH, ORP, conductivity, and various dissolved gases. It allows for expanded monitoring capabilities essential for complex water and process applications.

Robust & Adaptable Design

Designed with a durable polycarbonate housing and aluminum back panel, the M800 offers ingress protection IP65/NEMA 4X (front) and IP20 (rear). Mounting flexibility allows for wall, panel, or pipe installation, making it suitable for a wide range of industrial environments in India and beyond.

User-Friendly Interface & Data Handling

Equipped with a high-contrast colored TFT touchscreen, the M800 boasts multilingual support and on-screen prompts for easy navigation. The transmitter features comprehensive event and measurement value logs, ensuring traceability and operational consistency.

FAQ's of Mettler Toledo Transmitter M800 Water 4-CH:

Q: How does the M800 Water 4-CH transmitter ensure accurate multi-parameter measurements?

A: The M800 Water 4-CH utilizes sensor-dependent technology and supports both Mettler Toledo ISM digital and analog sensors, ensuring high measurement accuracy for parameters such as pH, ORP, conductivity, dissolved oxygen, ozone, and chlorine.

Q: What are the mounting options available for the M800 Water 4-CH transmitter?

A: This transmitter can be installed on a wall, panel, or pipe, providing flexibility to accommodate various facility layouts in water, wastewater, and process applications.

Q: When is it beneficial to use the M800 for water quality monitoring?

A: The M800 Water 4-CH is particularly advantageous in continuous monitoring scenarios, such as in municipal water treatment, industrial process water control, steam systems, and applications requiring simultaneous multi-parameter analysis.

Q: Where can the M800 Water 4-CH transmitter be deployed?

A: The unit is designed for use in environments requiring robust ingress protection, including water and industrial processing plants, thanks to its IP65/NEMA 4X front and broad operating temperature range from 0 to 60C.

Q: What is the process for connecting sensors to the transmitter?

A: The M800 features plug & measure module compatibility, allowing seamless connection of up to four digital ISM or analog sensors. Configuration is straightforward through the multilingual touch interface, guided by on-screen prompts.

Q: How does the data logging feature support operations?

A: The M800 provides standard event and measured value logs, enabling traceability, easier troubleshooting, and compliance with regulatory standards in water quality management.

Q: What are the main benefits of using the M800 Water 4-CH transmitter?

A: Key advantages include high measurement accuracy, simultaneous multi-sensor input, robust and versatile installation options, intuitive touchscreen operation, comprehensive data logging, and support for popular industrial communication protocols.
