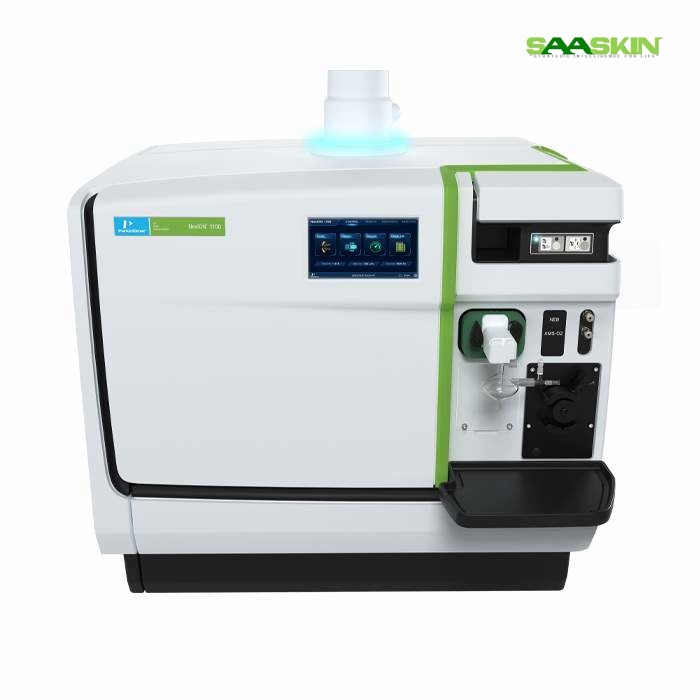

PerkinElmer NexION 2200 ICP Mass Spectrometer

PerkinElmer NexION 2200 ICP Mass Spectrometer

Get a Price/Quote

Product Details:

Core Components RF plasma torch, quadrupole mass analyzer, sample introduction system, peristaltic pump, auto-sampler, interface/cone system
Power Source AC electrical connection
Capacity High-throughput, designed for both routine and advanced trace elemental analysis
Temperature Range Laboratory ambient; compatible with temperature-controlled spray chamber accessories
Automation Grade Fully Automated
Feature High sensitivity, superior interference removal, triple quadrupole technology, user-friendly interface, compatibility with automation
Frequency RF Generator: 27.12 MHz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer NexION 2200 ICP Mass Spectrometer Price And Quantity

PerkinElmer NexION 2200 ICP Mass Spectrometer Product Specifications

Voltage 200240 V, 50/60 Hz
Measurement Range Parts per trillion to percentage levels, depending on element and matrix
Model No NexION 2200
Dimension (L*W*H) 950 mm x 750 mm x 600 mm
Display Type Touch-screen control panel and integrated software interface
Type ICP Mass Spectrometer
Weight Approximately 160 kg (352 lbs)
Accuracy Sub-parts per billion capability depending on analyte and matrix
Frequency RF Generator: 27.12 MHz
Equipment Materials Robust alloy frame with corrosion-resistant components; specialized sample introduction system
Usage Determination of trace and ultra-trace elements in aqueous and solid samples; environmental, clinical, food, pharmaceutical, geological, and industrial applications
Core Components RF plasma torch, quadrupole mass analyzer, sample introduction system, peristaltic pump, auto-sampler, interface/cone system
Feature High sensitivity, superior interference removal, triple quadrupole technology, user-friendly interface, compatibility with automation
Automation Grade Fully Automated
Capacity High-throughput, designed for both routine and advanced trace elemental analysis
Temperature Range Laboratory ambient; compatible with temperature-controlled spray chamber accessories
Power Source AC electrical connection

Maximum Sample Throughput Up to 240 samples/day
Collision/Reaction Cell SMARTintro Universal Cell (with Q0 quadrupole)
Cooling Requirements External chiller recommended
Interface Triple Cone System (sampler, skimmer, hyper-skimmer)
Readout Digital, multi-element display
Noise Level <55 dB (typical) in laboratory
Resolution Standard, High, and Ultra-High
Operating Temperature 15C to 30C (recommended)
Sample Introduction ASX-560 Auto Sampler, Cyclonic Spray Chamber, High-throughput Nebulizer
Detection System Discrete Dynode Electron Multiplier
Plasma Gas Flow Rate 818 L/min (Ar)
Software Syngistix for ICP-MS
Mass Range 6286 amu
Data Output/Connectivity USB, Ethernet, LIMS compatible
Maintenance Tool-free sample cone replacement; automated shutdown and cleaning protocols

Product Description

Brand PerkinElmer

Model 2200 ICP

Capacity 34 MHz

CAT No N8170012

Application Spectroscopy

For analytical testing labs performing trace-elemental analyses, the NexION 2200 ICP-MS builds on a 40-year history of innovation in ICP-MS and a strong tradition of reliable, easy-to-use, low-maintenance instrumentation, delivering uncompromised performance, accuracy, and repeatability.

Superior Analytical Performance

The NexION 2200 delivers exceptional sensitivity, accuracy down to sub-parts per billion, and robust interference removal, thanks to its triple quadrupole technology and SMARTintro Universal Cell. It supports a broad measurement range from parts per trillion to percentage levels, making it an excellent choice for routine and advanced applications alike.

Enhanced Productivity and Automation

Designed for demanding laboratories, the system accommodates up to 240 samples per day. Fully automated sample introduction, tool-free maintenance, and integrated cleaning protocols minimize downtime and enhance throughput, allowing efficient operation in high-volume environments.

User-Friendly Interface and Connectivity

With a digital, multi-element touchscreen display and SyngistixTM software, users enjoy straightforward instrument control and data management. The instrument's compatibility with USB, Ethernet, and LIMS systems facilitates seamless data transfer and workflow integration, streamlining laboratory processes.

FAQ's of PerkinElmer NexION 2200 ICP Mass Spectrometer:

Q: How does the NexION 2200 ICP-MS improve trace element detection in complex samples?

A: The NexION 2200 utilizes a combination of high sensitivity quadrupole mass analyzers and the SMARTintro Universal Cell, which includes a Q0 quadrupole. This setup effectively removes interferences, enabling precise detection of trace and ultra-trace elements, even in challenging matrices.

Q: What is the maximum sample throughput, and how does automation enhance workflow?

A: The system can process up to 240 samples per day using the ASX-560 autosampler and high-throughput nebulizer. Its fully automated operation-encompassing sample introduction, cleaning, and shutdown steps-streamlines workflows and reduces manual intervention, increasing laboratory productivity.

Q: When should maintenance be performed, and is it user-friendly?

A: Routine maintenance is facilitated by tool-free sample cone replacement and automated shutdown/cleaning protocols. Operators are notified via the touchscreen display, making it easy and efficient to maintain optimal instrument performance without specialized tools.

Q: Where is the NexION 2200 best suited for use?

A: This system is ideal for laboratories engaged in environmental, clinical, food, pharmaceutical, geological, and industrial analyses. Its robust design and high sample capacity make it suitable for both research and routine quality control settings.

Q: What connectivity and data management options are available with the NexION 2200?

A: The instrument supports USB, Ethernet, and LIMS integration, ensuring versatile data output and compatibility with laboratory information management systems. These features help laboratories manage data effectively and comply with traceability requirements.

Q: How does the user interface benefit daily operation?

A: Operators interact with a touchscreen control panel and intuitive SyngistixTM software, allowing for seamless method setup, real-time monitoring, and multi-element analysis. The straightforward interface reduces training time and minimizes operational errors.

Q: What are the installation and operating requirements for the NexION 2200?

A: The instrument requires an AC power connection (200-240 V, 50/60 Hz), an external chiller for optimal performance, and ambient laboratory temperatures between 15C and 30C. Its compact footprint allows installation in a variety of laboratory environments.
