PerkinElmer Spectrum Two FT-IR LiTaO3 Detector Spectrometer PerkinElmer Spectrum Two FT-IR LiTaO3 Detector Spectrometer PerkinElmer Spectrum Two FT-IR LiTaO3 Detector Spectrometer

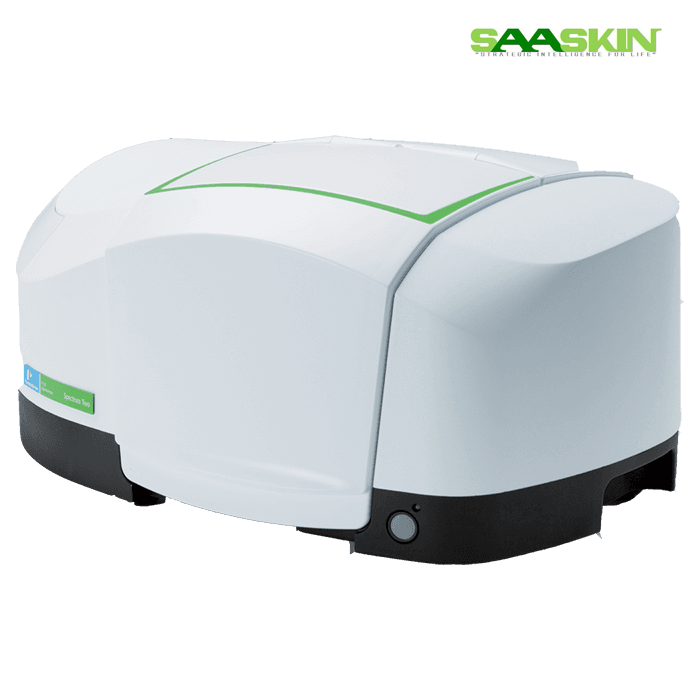

PerkinElmer Spectrum Two FT-IR LiTaO3 Detector Spectrometer
PerkinElmer Spectrum Two FT-IR LiTaO3 Detector Spectrometer PerkinElmer Spectrum Two FT-IR LiTaO3 Detector Spectrometer

PerkinElmer Spectrum Two FT-IR LiTaO3 Detector Spectrometer

Get a Price/Quote

Product Details:

  • Core Components LiTaO (Lithium Tantalate) detector, KBr beamsplitter, IR source, sealed interferometer
  • Model No Spectrum Two LiTaO3 Detector
  • Capacity Single-sample compartment (standard), compatible with multi-sample accessories
  • Frequency Spectral range: 8300350 cm (with KBr optics)
  • Power Source AC mains power
  • Measurement Range 8300350 cm
  • Voltage 100240 V AC, 50/60 Hz
  • Click to View more
Request to Call Back Send Inquiry
X

PerkinElmer Spectrum Two FT-IR LiTaO3 Detector Spectrometer Price And Quantity

PerkinElmer Spectrum Two FT-IR LiTaO3 Detector Spectrometer Product Specifications

  • Single-sample compartment (standard), compatible with multi-sample accessories
  • Spectral range: 8300350 cm (with KBr optics)
  • LiTaO (Lithium Tantalate) detector, KBr beamsplitter, IR source, sealed interferometer
  • Spectrum Two LiTaO3 Detector
  • No integrated display; operation via PC with software interface
  • AC mains power
  • 8300350 cm
  • Approximately 10 kg
  • 450 mm x 320 mm x 220 mm
  • High-quality alloy casing with corrosion-resistant finish
  • Wavenumber accuracy: 0.01 cm, Photometric accuracy: <0.1%T
  • FT-IR Spectrometer (Fourier Transform Infrared)
  • 100240 V AC, 50/60 Hz
  • Qualitative and quantitative analysis of organic and inorganic compounds, suitable for laboratories
  • Compact design, robust with high sensitivity, easy operation, minimal maintenance, integrated with Touch-enabled software
  • Semi-automatic/automatic (software controlled)
  • Ambient (operating environment typically 15C to 35C)
  • Standard, compatible with a wide range of accessories
  • Better than 0.01 cm
  • Minimal; tool-free access to sample area for cleaning
  • Up to 80% RH (non-condensing)
  • Better than 0.5 cm
  • Spectral data, quantitative analysis reports, data export in multiple formats
  • Internal solid-state reference laser
  • LiTaO pyroelectric detector
  • Dependent on connected PC/Server
  • Integrated IR source (air-cooled)
  • Windows 10 or later for software operation
  • Pre-loaded methods for pharmaceutical, polymer, and environmental analyses
  • Sealed, desiccated
  • CE marked, RoHS compliant
  • USB, Ethernet interface
  • Standard sample holder, power cable, software CD or download link, user manual
  • <0.1%T peak-to-peak
  • Spectrum software suite, including Easy Compare and AssureID
  • Less than 2 minutes from power-on

Product Description

Brand                     PerkinElmer

Model                     Spectrum Two

Capacity                 8,300 i 350 cm-1

CAT No                   L160000A

Application            Spectroscopy

Easy to use, powerful, compact and robust  Spectrum Two is the FT-IR spectrometer of choice for everyone, everywhere. With fully integrated, robust universal sampling for trouble-free measurements and portability options, Spectrum Two is ideal for use in both laboratory and remote testing environments. Ideally suited to everyday analysis, you can confidently perform fast, accurate IR analysis and assure the quality of your materials across a wide range of applications. Choose the Spectrum Two + that combines a powerful industrial-grade touch screen with cloud connectivity to offer you maximum productivity



High Performance and Precision

Engineered with a sealed, desiccated interferometer and a LiTaO3 pyroelectric detector, the Spectrum Two achieves spectral resolution better than 0.5 cm1 and wavenumber reproducibility better than 0.01 cm1. Its integrated IR source and solid-state reference laser ensure stable, accurate measurements in every session, even at up to 80% relative humidity.


Effortless Operation and Maintenance

Minimal routine maintenance is required thanks to the tool-free, easily accessible sample compartment and robust design. The intuitive Spectrum software suite, including pre-configured methods and an easy-to-use interface, minimizes operator error and accelerates routine tasks such as cleaning, calibration, and validation.


Connectivity and Versatility

With seamless USB and Ethernet connectivity, data can be quickly exported in multiple formats. The standard sample compartment supports a wide array of compatible accessories, enabling analyses ranging from pharmaceuticals to polymers. Operation via PC allows for enhanced data management and flexibility within any laboratory setup.

FAQ's of PerkinElmer Spectrum Two FT-IR LiTaO3 Detector Spectrometer:


Q: How is the PerkinElmer Spectrum Two FT-IR spectrometer operated and controlled?

A: The spectrometer does not feature an integrated display and is controlled via a PC using the Spectrum software suite (compatible with Windows 10 or later). Operation is straightforward with touch-enabled software and automated or semi-automatic workflows.

Q: What types of analyses can be performed with this FT-IR spectrometer?

A: This instrument is suitable for both qualitative and quantitative analysis of organic and inorganic compounds. It comes pre-configured with methods for pharmaceutical, polymer, and environmental samples, making it versatile for many laboratory applications.

Q: When is cleaning or maintenance required for the spectrometer?

A: Routine maintenance is minimal, largely limited to periodic cleaning of the sample compartment, which requires no tools thanks to the easily accessible design. The sealed interferometer further reduces maintenance frequency.

Q: Where can the data collected by the Spectrum Two spectrometer be stored or exported?

A: All collected data is managed and stored on the connected PC or server. The software offers flexible export options in multiple formats for spectral data and quantitative reports, making it convenient for data sharing and further analysis.

Q: What is the process for preparing a sample for measurement?

A: Samples are placed in the standard single-sample compartment using the included sample holder. The system is compatible with a range of optional accessories for different sample types or throughput requirements, allowing users to adjust for best measurement practices.

Q: How does the spectrometer benefit laboratory workflows?

A: Its rapid startup (less than 2 minutes), high accuracy, and robust design ensure reliable and reproducible results with minimal downtime. The integrated software automates data acquisition, analysis, and reporting, simplifying routine testing and method validation.

Q: What are the safety and compliance features of this FT-IR spectrometer?

A: The Spectrum Two is CE marked for safety and RoHS compliant, ensuring it meets international standards for electronic equipment safety and environmental responsibility.
