Analytikjena ZEEnit 650P Furnace Vision Graphite Furnace AAS with Zeeman background correction

Analytikjena ZEEnit 650P Furnace Vision Graphite Furnace AAS with Zeeman background correction

Get a Price/Quote

Product Details:

Voltage 230 V AC
Frequency 50/60 Hz
Accuracy High precision; typically <2% RSD for standard solutions
Measurement Range ppb to ppm concentrations for a wide range of elements
Core Components Graphite furnace atomizer, Zeeman background correction system, optical bench, power supply unit
Power Source AC Mains Electricity
Model No ZEEnit 650P
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Analytikjena ZEEnit 650P Furnace Vision Graphite Furnace AAS with Zeeman background correction Price And Quantity

Analytikjena ZEEnit 650P Furnace Vision Graphite Furnace AAS with Zeeman background correction Product Specifications

Equipment Materials Corrosion-resistant, metal housing with precision optical and furnace components
Model No ZEEnit 650P
Power Source AC Mains Electricity
Temperature Range Ambient to 3000C (typical operation up to 3000C for graphite furnace atomizer)
Weight Approx. 65 kg (instrument only)
Feature Furnace Vision integrated camera, transverse heated graphite tube, patented Zeeman 3-field background correction, full automation support
Display Type Integrated digital LCD display
Automation Grade Fully Automatic (with optional autosampler)
Capacity Multiple sample capacity; up to 90 sample positions with automatic sampler (AS) compatibility
Type Graphite Furnace Atomic Absorption Spectrometer (AAS)
Voltage 230 V AC
Dimension (L*W*H) Approx. 520 x 540 x 320 mm (without autosampler)
Usage Elemental analysis of trace metal concentrations in analytical laboratories
Frequency 50/60 Hz
Accuracy High precision; typically <2% RSD for standard solutions
Core Components Graphite furnace atomizer, Zeeman background correction system, optical bench, power supply unit
Measurement Range ppb to ppm concentrations for a wide range of elements

Graphite Tube Type Transversely heated, platform or wall type graphite tubes
Sample Introduction Compatible with manual and automatic sample injection systems
Ramp/Soak Programs Programmable temperature stages for drying, ashing, and atomizing
Gas Requirements High purity Argon as shielding and purge gas; optional modifier gas support
Typical Applications Environmental, clinical, food safety, pharmaceutical, metallurgical, and chemical analysis
Service Support Global technical service network, remote diagnostics via software
Safety Features Automatic gas leak detection, over-temperature protection, tube breakage detection
Background Correction Transverse Zeeman effect with 3-field magnetic modulation for superior matrix correction
Connectivity USB, serial, and Ethernet interfaces for data transfer and peripherals
Detection System Photomultiplier tube (PMT) detector with high sensitivity and stability
Furnace Vision Integrated camera for direct visual monitoring of sample deposition and atomization process
Ambient Operation Conditions Temperature: 1035C; Humidity: 2080% (non-condensing)
Max Sample Throughput Up to 120 samples per hour (with autosampler)
Optical System High-resolution double beam, Echelle monochromator, fiber-optic light guidance
Lamp Type Hollow cathode lamp and electrodeless discharge lamp (EDL) support
Software WinAAS operating software for data acquisition and instrument control

Product Description

Brand Analytikjena

Model 650P

Capacity 0.94 g/L 1 %Abs (Pb 283)

CAT No 813-0650P-2-K

Application Spectroscopy

Zeeman AAS for graphite furnace and hydride technique. Highly sensitive trace analyzer for recurring measurement tasks, equipped with a furnace camera

Superior Matrix Correction with Zeeman 3-Field Magnetic Modulation

The ZEEnit 650P leverages patented Zeeman background correction using a transverse magnetic field and three-field modulation. This technology delivers accurate matrix correction by eliminating interferences, ensuring reliable results even in complex sample matrices and challenging applications such as environmental and clinical analysis.

Enhanced Precision with Furnace Vision and High-Resolution Optics

Equipped with an integrated camera, the Furnace Vision system enables direct visual control over sample deposition and atomization. Combined with a high-resolution double-beam, echelle monochromator, and fiber-optic guidance, this system offers outstanding sensitivity, minimizing errors during sample measurement and maximizing process transparency for users.

Full Automation and Extensive Sample Handling Capacity

The instrument supports both manual and automatic injection systems, allowing seamless adaption to laboratory workflows. With an autosampler, the ZEEnit 650P can process up to 120 samples per hour and accommodate up to 90 sample positions, ensuring high throughput and operational efficiency for busy labs.

FAQ's of Analytikjena ZEEnit 650P Furnace Vision Graphite Furnace AAS with Zeeman background correction:

Q: How does the Zeeman background correction system benefit my analyses?

A: The Zeeman 3-field magnetic modulation in the ZEEnit 650P provides superior matrix correction by effectively compensating for background absorption, especially in samples with complex matrices. This ensures higher accuracy and reliability in trace metal determinations, reducing interference that often affects results in standard AAS instruments.

Q: What is the advantage of the Furnace Vision camera in the analysis process?

A: The integrated Furnace Vision camera enables direct visual monitoring of the sample inside the graphite furnace during deposition and atomization. This allows users to optimize sample placement, assess the process in real time, and troubleshoot potential issues, ultimately enhancing analytical confidence and reproducibility.

Q: When should I use the autosampler, and what is its maximum capacity?

A: The autosampler is ideal for high-throughput laboratories or when handling numerous samples simultaneously. The ZEEnit 650P autosampler can manage up to 90 sample positions and analyze up to 120 samples per hour, streamlining workflows and reducing manual intervention.

Q: Where can the ZEEnit 650P be used for elemental analysis?

A: This instrument is well-suited for a broad range of laboratory environments, including environmental monitoring, food safety, clinical, pharmaceutical, metallurgical, and chemical analytical labs. Its precise measurements across ppb to ppm levels make it valuable for virtually any laboratory needing accurate trace metal determination.

Q: What gases and utilities are necessary for operating the ZEEnit 650P?

A: High-purity Argon gas is required for shielding and purging the graphite furnace; there is also optional support for modifier gases depending on analytical needs. The system operates on standard 230 V AC mains electricity and features robust safety monitoring for gas leaks and over-temperature events.

Q: How does WinAAS software enhance the operation of the ZEEnit 650P?

A: WinAAS offers comprehensive data acquisition, instrument control, and remote diagnostics. It simplifies sample programming, data analysis, and report generation, facilitating intuitive operation whether running routine assays or sophisticated research analyses.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Life Sciences' category

PerkinElmer Avio 550 Max ICP-OES Concentric/Cyclonic Configuration Equipment Materials : Corrosionresistant alloys, polymeric and ceramic components Power Source : AC Electricity Model No : Avio 550 Max Feature : High sensitivity, low argon consumption, advanced plasma view, plugandplay torch technology Weight : Approximately 115 kg (253 lbs) Temperature Range : Ambient to 40C (operating environmental range) Automation Grade : Fully automatic (with autosampler option) Display Type : Integrated touch screen and software interface Voltage : 100240 V AC Type : Inductively Coupled Plasma Optical Emission Spectrometer (ICPOES) Usage : Elemental analysis in laboratory applications (environmental, food, pharma, mining, petrochemicals, etc.) Dimension (L*W*H) : 107.5 cm x 64.5 cm x 68.5 cm Core Components : Plasma system, Shear gas system, CID detector, Concentric/Cyclonic sample introduction system, Optical system Measurement Range : ppm to % level detection for most elements Accuracy : Subppb detection limits, high precision (typical RSD < 1%) Capacity : Simultaneous multielement analysis capability Frequency : 50/60 Hz

Send Inquiry

Bruker RAM II FT Raman Spectrometer Equipment Materials : Optical unit with precision stainless steel/aluminum; lasersafe enclosure; highquality optical components Power Source : 220 V AC, 50/60 Hz Model No : RAM II Feature : Dual channel operation, High S/N ratio, Lasersafe specimen chamber, Full FTIR compatibility, Modular design Weight : Approx. 42 kg (main module) varies based on configuration Temperature Range : Ambient up to 600 C (with optional heating stages) Automation Grade : Semiautomatic with motorized accessory support Display Type : External computerbased control and analysis; digital interface Voltage : 220 V AC Type : Fourier Transform Raman Spectrometer Usage : Highly sensitive FTRaman spectroscopy for research or quality control Dimension (L*W*H) : Approx. 485 x 520 x 320 mm (main module) Core Components : Nd:YAG Laser, Michelson Interferometer, High sensitivity Ge detector, Sample compartment, computer interface Measurement Range : 503500 cm Accuracy : Spectral resolution up to 4 cm; wavelength accuracy 0.01 cm Capacity : Single or dualchannel FTRaman capability; sample capacity depends on sample holder and configuration Frequency : Laser excitation at 1064 nm standard; optional 785 nm

Send Inquiry

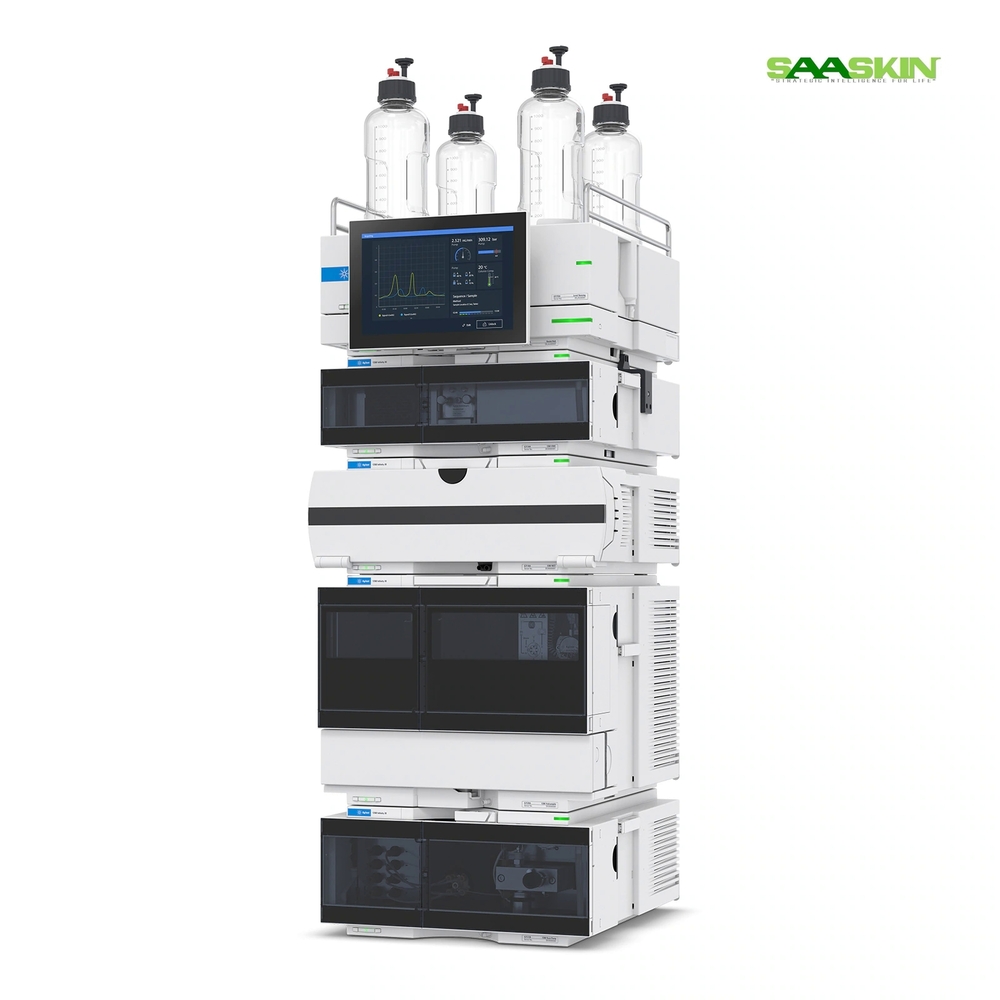

Agilent Technologies 1290 Infinity III Bio LC System Equipment Materials : Bioinert materials (PEEK, titanium, ceramics) Power Source : AC Mains Model No : 1290 Infinity III Bio LC System Feature : Highest UHPLC performance; bioinert for biocompatible applications; low carryover Weight : Approximately 3540 kg (system module dependent) Temperature Range : 4C to 70C (thermostatted autosampler and column compartment) Automation Grade : Fully automated Display Type : Color touch screen front panel Voltage : 100240 VAC Type : Bio LC System, HighPerformance Liquid Chromatography (HPLC) Usage : Protein, antibody, and oligonucleotide analysis; biopharmaceutical R&D Dimension (L*W*H) : 420 mm x 600 mm x 620 mm (stacked configuration, varies per modules) Core Components : Bioinert pump, thermostatted autosampler, column compartment, diode array detector Measurement Range : Wide range for peptide, protein and nucleic acid separations Accuracy : Flow precision <0.07% RSD Capacity : Standard analytical to semipreparative Configurations, up to 2 mL/min Frequency : 50/60 Hz
