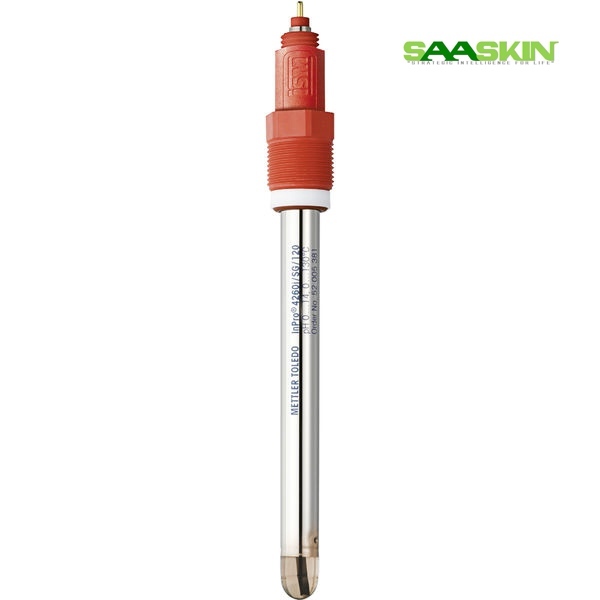

Mettler Toledo pH Sensor InPro4260i/SG/425

Mettler Toledo pH Sensor InPro4260i/SG/425

Get a Price/Quote

Product Details:

Accuracy 0.01 pH
Model No InPro4260i/SG/425
Core Components pH sensitive glass membrane, Integrated temperature sensor, ISM electronics
Feature Intelligent Sensor Management (ISM), Pre-pressurized gel electrolyte, Steam Sterilizable
Measurement Range pH 0...14
Temperature Range 0 to 130C
Automation Grade Automatic, with Intelligent Diagnostics
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo pH Sensor InPro4260i/SG/425 Price And Quantity

Mettler Toledo pH Sensor InPro4260i/SG/425 Product Specifications

Accuracy 0.01 pH
Model No InPro4260i/SG/425
Weight Approx. 160 g
Equipment Materials Glass Shaft, Polypropylene Cap, Ceramic Diaphragm
Core Components pH sensitive glass membrane, Integrated temperature sensor, ISM electronics
Dimension (L*W*H) Shaft Length 120 mm Diameter 12 mm
Feature Intelligent Sensor Management (ISM), Pre-pressurized gel electrolyte, Steam Sterilizable
Measurement Range pH 0...14
Display Type None (Sensor Only)
Temperature Range 0 to 130C
Automation Grade Automatic, with Intelligent Diagnostics
Type Process pH Sensor
Power Source Powered by Process Transmitter (4-wire connection)
Usage In-line pH Measurement in Industrial Processes

Sensor Technology Digital ISM (Intelligent Sensor Management)
Connector VP 8 or S7 Connection
Sterilization CIP/SIP up to 130°C, 60 min
Electrolyte Pressurized Gel, KCl-based
Pressure Range Maximum 6 bar (87 psi) at 25°C
Reference System Silver/Silver Chloride (Ag/AgCl), Double-junction

Product Description

Brand Mettler Toledo

Product Type pH

Capacity 0 C - 130 C

CAT No 52005382

Application pH Accessories

The InPro 4260i is a combined pH and ORP (redox) probe with integrated temperature sensor designed for use in highly demanding chemical applications. It provides ISM advanced diagnostics to optimize maintenance decisions and sensor lifetime.

Versatile Industrial Application

The InPro4260i/SG/425 sensor is engineered for continuous, in-line pH measurement in industrial processes, excelling in challenging environments due to its robust construction and high chemical resistance. Its wide temperature and pressure capabilities make it suitable for pharmaceutical, chemical, and food processing industries.

Advanced Intelligent Sensor Management (ISM)

Featuring ISM technology, this pH sensor provides predictive maintenance and real-time diagnostics, minimizing downtime and reducing overall operating costs. The integrated ISM electronics facilitate ease of use and reliable data communication with your process transmitter.

Simplified Maintenance and Calibration

With its digital design and pressurized gel electrolyte, the InPro4260i/SG/425 significantly reduces calibration frequency and minimizes drift, translating into less maintenance and higher productivity. The sensor's construction facilitates quick installation and replacement, streamlining your process workflows.

FAQ's of Mettler Toledo pH Sensor InPro4260i/SG/425:

Q: How does the Intelligent Sensor Management (ISM) technology in the InPro4260i/SG/425 benefit my process?

A: ISM technology delivers advanced predictive diagnostics, indicating sensor status and maintenance needs. This minimizes unplanned downtime, optimizes calibration intervals, and enhances process reliability.

Q: What is the recommended usage of the InPro4260i/SG/425 pH sensor in industrial applications?

A: This sensor is ideal for continuous, in-line pH measurement in demanding industrial environments such as chemical production, pharmaceuticals, or food processing, where accuracy and durability are essential.

Q: When should the InPro4260i/SG/425 sensor be sterilized, and how is it designed for sterilization?

A: The sensor supports steam sterilization and cleaning-in-place (CIP/SIP) processes up to 130C for 60 minutes. Sterilization is recommended based on process requirements or after prolonged use to maintain measurement accuracy.

Q: What are the benefits of the double-junction, pressurized gel electrolyte system?

A: The double-junction configuration and pre-pressurized KCl-based gel electrolyte increase resistance to contamination and ensure stable, drift-free readings in harsh and variable chemical environments.

Q: Where can the InPro4260i/SG/425 be installed, and which connectors are supported?

A: It is designed for integration into in-line process systems using standard VP 8 or S7 connectors, making it compatible with a wide range of industrial transmitters and installations.

Q: How accurate is the InPro4260i/SG/425 pH sensor, and what is its measurement range?

A: The sensor provides high-precision pH readings with an accuracy of 0.01 pH and supports a wide measurement range from pH 0 to 14, suitable for diverse process conditions.

Q: What maintenance is involved with the InPro4260i/SG/425, and how is it powered?

A: Maintenance requirements are minimized due to digital ISM and pre-pressurized electrolyte features. The sensor is powered by the process transmitter via a 4-wire connection, eliminating the need for external power sources.
