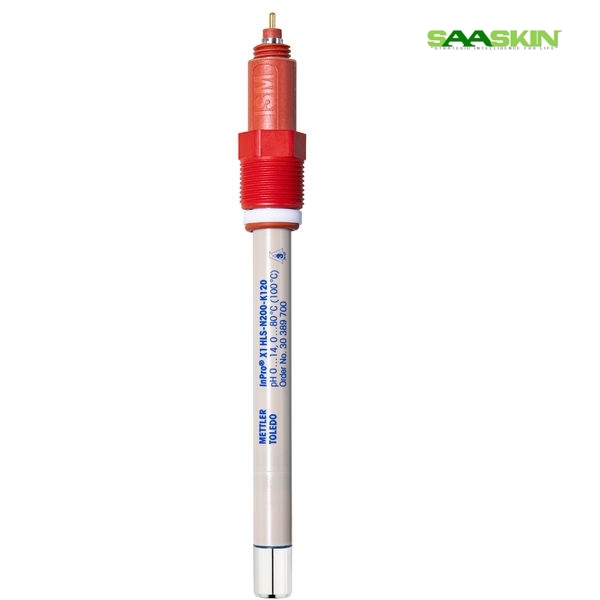

Mettler Toledo pH Sensor InPro X1 HLS-N200-K120

Mettler Toledo pH Sensor InPro X1 HLS-N200-K120

Get a Price/Quote

Product Details:

Measurement Range pH 0 14
Power Source Not required for sensor; powered via pH transmitter
Feature Designed for hygienic applications, robust and chemical resistant, steam sterilizable, autoclavable
Frequency N/A (not applicable for sensor)
Voltage Not applicable (passive electrochemical sensor)
Model No InPro X1 HLS-N200-K120
Automation Grade Automatic, for continuous measurement
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo pH Sensor InPro X1 HLS-N200-K120 Price And Quantity

Mettler Toledo pH Sensor InPro X1 HLS-N200-K120 Product Specifications

Automation Grade Automatic, for continuous measurement
Voltage Not applicable (passive electrochemical sensor)
Frequency N/A (not applicable for sensor)
Type pH Sensor
Model No InPro X1 HLS-N200-K120
Dimension (L*W*H) Length 120 mm, Diameter 12 mm
Feature Designed for hygienic applications, robust and chemical resistant, steam sterilizable, autoclavable
Power Source Not required for sensor; powered via pH transmitter
Measurement Range pH 0 14
Temperature Range 0C to 100C
Weight Approx. 200 grams
Usage In-line pH measurement for hygienic applications
Core Components Glass pH electrode, Noryl/PEEK housing, cable connection
Capacity Suitable for standard process volumes (exact capacity not specified)
Display Type None (sensor with cable output)
Equipment Materials Durable glass body, Noryl head and PEEK shaft
Accuracy 0.02 pH

Sterilization Capability CIP/SIP compatible, autoclavable
Reference System Double junction, Ag/AgCl
Electrolyte Type Polymer gel, maintenance-free
Connection Type S7 connector
Sensor Diameter 12 mm
Pressure Range 0 to 6 bar (at 25°C)
Application Food & beverage, pharmaceutical processing, biotechnology
Sensor Length 120 mm
Response Time < 60 seconds (pH change response)
Shaft Material PEEK (Polyether ether ketone)

Product Description

Brand Mettler Toledo

Model InPro X1 HLS-N200-K120

Capacity 0 14 pH

CAT No 30389700

Application Inprocess Analysis

The InPro X1 HLS is a digital, food-safe, in-line pH sensor that withstands clean-in-place processes. The sensor's unbreakable X-Chip technology eliminates the risk of glass contamination. It meets all major regulations for food contact applications.

Extreme Durability and Hygiene

Constructed with a PEEK shaft and a glass body, the InPro X1 HLS-N200-K120 is designed for longevity and hygiene. Its materials are resistant to chemicals and can withstand regular sterilization, making the sensor suitable for food, beverage, pharmaceutical, and biotechnology production where contamination must be avoided.

Maintenance-Free, Rapid Measurement

With a polymer gel electrolyte and double junction construction, this sensor is maintenance-free, minimizing downtime and service costs. The sensor's rapid response-less than 60 seconds-ensures real-time pH readings, crucial for high-speed process adjustments and quality control in continuous production environments.

Versatile Connectivity and Integration

Equipped with an S7 connector and cable output, the InPro X1 HLS-N200-K120 integrates seamlessly with standard pH transmitters and automated process control systems. Its straightforward installation supports user-friendly, automated monitoring in hygienic environments, from pilot plants to large-scale manufacturing.

FAQ's of Mettler Toledo pH Sensor InPro X1 HLS-N200-K120:

Q: How does the InPro X1 HLS-N200-K120 sensor ensure hygienic pH measurement in food and pharmaceutical applications?

A: The sensor is built with durable, chemically resistant materials (glass, PEEK, Noryl) and is fully steam sterilizable (CIP/SIP compatible and autoclavable). This allows regular sterilization and cleaning, essential for maintaining hygiene standards in sensitive applications such as food, beverage, and pharmaceuticals.

Q: What type of maintenance is required for the InPro X1 HLS-N200-K120 pH sensor?

A: This pH sensor uses a maintenance-free polymer gel electrolyte and a double junction reference system, which significantly reduces the need for regular maintenance, making it ideal for continuous, in-line usage.

Q: When should this pH sensor be used in a process line?

A: This sensor is best employed in any critical process requiring accurate, real-time, hygienic pH monitoring, particularly in food processing, pharmaceutical manufacturing, and biotechnology setups where contamination control and rapid response are necessary.

Q: Where can the InPro X1 HLS-N200-K120 be installed in a production facility?

A: The sensor is designed for in-line measurement and can be installed directly in process vessels, pipelines, or hygiene-critical points within food, beverage, and pharmaceutical lines, wherever continuous pH control is needed.

Q: What benefits does the double junction reference system provide?

A: The double junction Ag/AgCl reference minimizes interference from sample contaminants and ensures stable, reliable pH readings over prolonged use, even in challenging chemical environments.

Q: How does the sensor interface with process automation systems?

A: It features an S7 connector and cable output, allowing connection to standard pH transmitters for automated pH control, data logging, and integration with plant process systems.

Q: What is the measurement range and accuracy of the InPro X1 HLS-N200-K120?

A: The sensor measures across the full pH 0-14 range with an accuracy of 0.02 pH, making it suitable for precise monitoring in diverse industrial applications.
