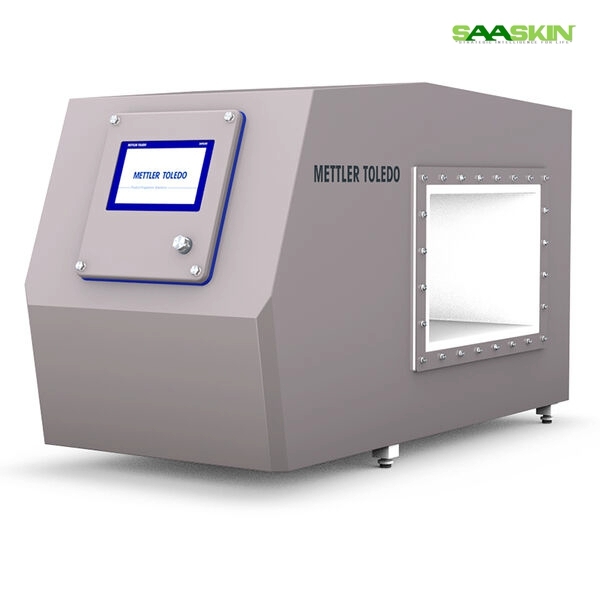

Mettler Toledo Metal Detector M33RB

Get a Price/Quote

Product Details:

Temperature Range 0C to 40C
Power Source Electric
Voltage 220V AC
Automation Grade Semi-Automatic
Measurement Range 1 mm to 10 mm (Metal Particle Size)
Core Components Detector Head, Control Unit, Conveyor System
Accuracy Detects Ferrous, Non-Ferrous and Stainless Steel Contaminants
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo Metal Detector M33RB Price And Quantity

Mettler Toledo Metal Detector M33RB Product Specifications

Usage Food, Pharmaceutical, Packaging Industries
Temperature Range 0C to 40C
Power Source Electric
Display Type Digital LCD Display
Dimension (L*W*H) 1200 mm x 600 mm x 1100 mm
Weight Approximately 90 kg
Type Metal Detector
Automation Grade Semi-Automatic
Voltage 220V AC
Measurement Range 1 mm to 10 mm (Metal Particle Size)
Core Components Detector Head, Control Unit, Conveyor System
Accuracy Detects Ferrous, Non-Ferrous and Stainless Steel Contaminants
Model No M33RB
Equipment Materials Stainless Steel Housing
Frequency 50/60 Hz
Capacity Up to 100 kg per conveyor
Feature High Sensitivity, Automatic Reject Mechanism, IP65 Protection

Conveyor Speed Adjustable, up to 30 meters/min
Reject Type Flap or Pusher Reject Mechanism
Finish Hygienic, Easy-to-clean Surface
Detection Method Balanced Coil System
Sensitivity Adjustment Digital Sensitivity Controls
Maintenance Tool-free belt removal for cleaning
Data Interface RS232/USB Connectivity
Installation Floor Mounted
Ingress Protection IP65 Rated for Washdown Environments
Alarm Type Audio and Visual (LED) Alarms
Product Throughput Variable, Up to 200 packs/min depending on product
Operating Humidity Up to 90% RH (Non-condensing)
Application Area Detection of metal contaminants in packaged and loose products
Safety Standard Conforms to international safety standards
User Interface Touchpad Control Panel

Product Description

Brand Mettler Toledo

Model M33RB

Capacity Up to 600 kHz

CAT No 3066721300

Application Metal Detector

Next generation industrial metal detector offers a step-change in performance and very high sensitivity. Suitable for large (25kg/50kg) bulk product inspection.

Advanced Detection Technology

The M33RB employs a balanced coil system, enabling precise detection of metal contaminants down to 1 mm in size. Its digital sensitivity controls allow users to tailor detection performance for various product types, ensuring reliable results and adherence to stringent industry standards.

Hygienic and Durable Design

With a stainless steel housing and hygienic, easy-to-clean surfaces, the M33RB is built for washdown environments (IP65 rated), making it suitable for industries where sanitation is critical. Tool-free belt removal and effortless maintenance help maintain consistent performance and minimize downtime.

User-Friendly Operation and Connectivity

Equipped with a digital LCD display, touchpad control panel, and both RS232/USB connectivity, the M33RB offers intuitive operation and seamless integration with data recording systems. Audio-visual alarms and an automatic reject mechanism provide real-time safety and process assurance.

FAQ's of Mettler Toledo Metal Detector M33RB:

Q: How does the M33RB metal detector identify different types of metal contaminants in products?

A: The M33RB uses a balanced coil detection system that can distinguish between ferrous, non-ferrous, and stainless steel contaminants. Advanced digital sensitivity controls allow for precise adjustment, ensuring even small metal fragments (as small as 1 mm) are reliably detected in packaged and loose products.

Q: What are the benefits of the IP65 washdown protection on the M33RB?

A: The IP65-rated design of the M33RB protects the detector against water jets and dust ingress, making it suitable for washdown cleaning in food processing, pharmaceutical, and packaging environments. This ensures both hygiene and equipment longevity, supporting strict sanitary requirements.

Q: When should maintenance be performed on the M33RB, and what is the process?

A: Routine maintenance should be conducted as per operational schedules or whenever cleaning is required. The process is highly efficient thanks to tool-free belt removal, allowing for quick cleaning of the conveyor and detection chamber without dismantling, minimizing downtime and facilitating compliance.

Q: Where can the M33RB be installed and what mounting options are available?

A: The M33RB is designed for floor mounting in production lines, ideal for placement in food, pharmaceutical, and packaging facilities across India. Its compact dimensions (1200 mm x 600 mm x 1100 mm) and robust build ensure compatibility with most manufacturing layouts.

Q: How does the automatic reject mechanism work and what options are available?

A: When a contaminant is detected, the M33RB activates either a flap or pusher reject system to automatically remove affected packs from the conveyor. This process is swift and efficient, helping to maintain product integrity and reduce the risk of contaminated goods reaching customers.

Q: What is the maximum operational capacity and throughput for the M33RB?

A: The system can handle loads up to 100 kg per conveyor, with throughput reaching up to 200 packs per minute, depending on the size and type of product. Conveyor speed is adjustable up to 30 meters per minute, allowing flexibility to fit diverse production requirements.

Q: What connectivity and data interface options does the M33RB offer for integration and monitoring?

A: The M33RB features RS232 and USB data interfaces, enabling users to export detection logs and integrate the detector with broader quality control and traceability systems, which is crucial for audits and consistent record-keeping.
