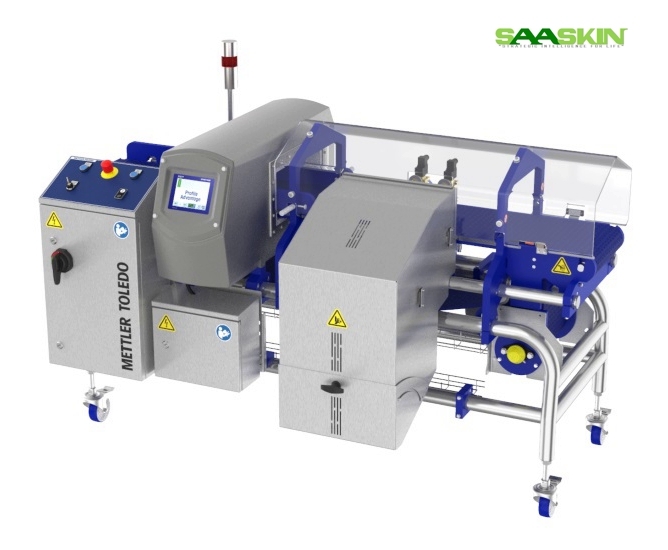

Mettler Toledo Profile Advantage Metal Detector

Get a Price/Quote

Product Details:

Capacity Customizable depending on application and product size
Voltage 220240V
Power Source 220240V AC, 50/60 Hz
Temperature Range 0C to 40C
Frequency Multi-frequency operation (adjustable, optimized for product type)
Model No Profile Advantage
Automation Grade Automatic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo Profile Advantage Metal Detector Price And Quantity

Mettler Toledo Profile Advantage Metal Detector Product Specifications

Model No Profile Advantage
Automation Grade Automatic
Equipment Materials Stainless Steel (Grade 304 and 316 available)
Frequency Multi-frequency operation (adjustable, optimized for product type)
Power Source 220240V AC, 50/60 Hz
Temperature Range 0C to 40C
Voltage 220240V
Capacity Customizable depending on application and product size
Type Profile Advantage Metal Detector
Measurement Range Configurable according to product and detection requirement
Display Type Touchscreen interface
Feature Optimized for challenging products; multi-simultaneous frequency detection; Reduce false rejects; Advanced product signal suppression
Accuracy High sensitivity with reduced false reject rate
Dimension (L*W*H) 1280 mm x 800 mm x 1400 mm (approx., depending on configuration)
Weight Approx. 90 kg (varies with configuration)
Usage Detection of ferrous, non-ferrous, and stainless steel contaminants in food processing
Core Components Profile Advantage detection head, conveyor system, rejection device

Data Connectivity USB, Ethernet, and support for industrial protocols
Software Profile Advantage management suite
Interface Languages Multi-language support
Ingress Protection IP66 rating for dust and water resistance
Calibration Auto-calibration and product setup
Alarms Audio and visual alarms, integrated in display
Reject Device Flap, pusher, air blast, or drop; customizable per line requirement
Product Throughput Up to 300 packages/min dependent on line setup
Detection Capability Detects contaminants down to 0.4 mm (stainless steel) in optimal conditions
Construction Type Hygienic design for washdown environments
Environmental Compliance RoHS compliant
Operating Humidity Up to 90% RH (non-condensing)
Conveyor Speed Adjustable, up to 60 meters/minute
Product Memory Storage for up to 100 product presets

Product Description

Brand Mettler Toledo

Model Safeline

Capacity 500 mm

CAT No 2801548500

Application Metal Detector

Safeline's most advanced food metal detector, which delivers up to 50 percent improved sensitivity when inspecting wet, hot, chilled, cooling, or metal film-packed products.

Unrivaled Detection Performance

The Profile Advantage Metal Detector delivers precise contaminant identification, utilizing advanced algorithms and multi-frequency operation. Its robust detection head adapts to varied product effects, minimizing false rejects and enabling reliable detection of even the smallest metal fragments. This ensures consistent product safety, even in challenging applications with high moisture or conductive products.

Designed for Demanding Environments

With an IP66 hygiene-focused build and stainless steel construction (grades 304 or 316), this metal detector withstands rigorous washdown settings. Auto-calibration and easy product setup simplify operation, while customizable reject devices-flap, pusher, air blast, or drop-allow seamless integration into any processing line.

Seamless Integration and Advanced Data Management

Profile Advantage supports USB and Ethernet connectivity along with industry-standard protocols, simplifying integration into existing plant systems. The software suite enables comprehensive monitoring, with storage for up to 100 product presets, and provides audio-visual alarms and detailed event tracking to meet safety and compliance requirements.

FAQ's of Mettler Toledo Profile Advantage Metal Detector:

Q: How can the Profile Advantage Metal Detector be integrated into existing food processing lines?

A: The metal detector supports USB, Ethernet, and industrial communication protocols, making integration with existing plant and data management systems straightforward. Its adjustable conveyor speed and customizable reject devices ensure compatibility with diverse processing requirements.

Q: What types of contaminants and products can this detector handle?

A: It detects ferrous, non-ferrous, and stainless steel contaminants in a variety of food products. Its multi-frequency operation is optimized for challenging and high-moisture products, reducing false rejects and ensuring robust food safety.

Q: When is calibration or product setup required, and how is it performed?

A: Auto-calibration and product setup are typically needed when introducing new products or after cleaning and maintenance. These processes are guided step-by-step via the intuitive touchscreen interface, ensuring accurate and consistent performance.

Q: Where can this metal detector be used effectively?

A: Thanks to its IP66-rated stainless steel construction and hygienic design, the Profile Advantage is ideal for food processing environments that require regular washdowns and strict hygiene compliance.

Q: What process does the system follow in rejecting contaminated products?

A: Upon detection of a contaminant, the system automatically activates a reject device (flap, pusher, air blast, or drop) tailored to your product and line setup, efficiently removing affected items without interrupting production flow.

Q: How does using the Profile Advantage benefit manufacturers and suppliers?

A: It enhances food safety by accurately detecting minute metal contaminants and reducing false rejects. This minimizes product waste, ensures compliance with food safety regulations like RoHS, and protects brand reputation.

Q: What languages and user support features does the system offer?

A: The detector's touchscreen interface supports multiple languages, making operation and training straightforward for diverse workforces. Audio and visual alarms, coupled with detailed software logs, support proactive monitoring and control.
